AX100
The AX100 is an add-on chamber that enhances the AX700 chassis by adding extra power, storage, and cooling options. It supports a standard PS2 PSU for additional power management and offers space for up to eight HDDs or SSDs. Additionally, the AX100 accommodates up to eight 120mm or 140mm fans and dual 560mm radiators on both sides for optimal thermal performance.
- The image is for reference only.
Versatile Expandability
The AX700 or AX700 TG Super Tower Chassis, when combined with the AX100 pedestal, offers multiple stacking options, either on top or bottom, or both top and bottom, creating an expandable system for enthusiasts. This setup allows for enhanced liquid cooling, storage, or dual system configurations, taking the expandability to the next level.
Learn more about AX700
- The image is for reference only.

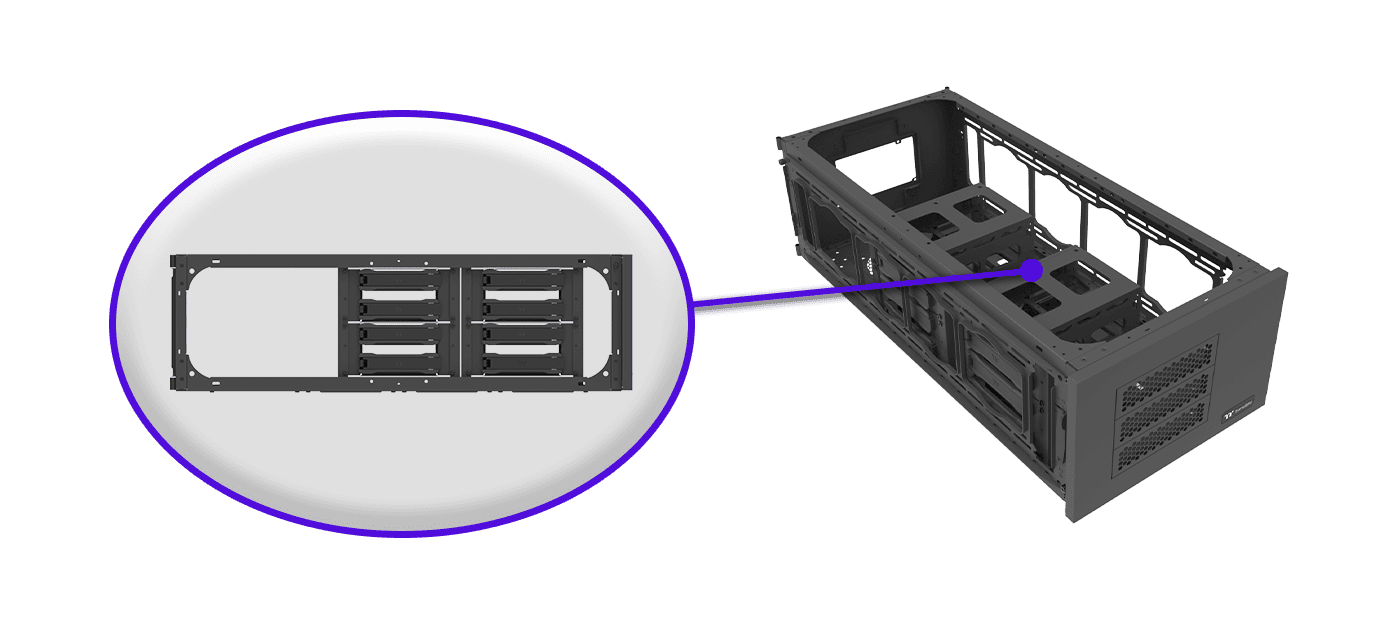

Storage Support
For storage compatibility, The AX100 supports up to eight 2.5‘’ SSDs or 3.5‘’ HDDs in total.
- The image is for reference only.
Perfect Dust Protection
The AX100 features dust filters on the front, left and right sides to protect the system.
- The image is for reference only.
DMD: Dismantlable Modular Design
No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.
- The image is for reference only.
Radiator Compatibility List
| Radiator Compatibility List | |||||||||||
| 120 mm |
240 mm |
360 mm |
140 mm |
280 mm |
420 mm |
560 mm |
|||||
| Left | ● | ● | ● | ● | ● | ● | ● | ||||
| Right | ● | ● | ● | ● | ● | ● | ● | ||||
Fan Compatibility List
| Fan Compatibility List | |||
| 120mm | 140mm | 200mm | |
| Left Side | 4 | 4 | - |
| Right Side | 4 | 4 | - |
| P/N |
CA-11C-00D1NN-00 |
|---|---|
| シリーズ | AX Series |
| モデル |
AX100 |
| ケースタイプ |
Pedestal |
| 外形寸法(高さ * 幅 * 奥行き) |
201 x 320 x 678.3 mm (7.91 x 12.60 x 26.71 inch) |
| サイドパネル |
Steel |
| カラー |
Black |
| 素材 | SPCC |
| 付属ファン | - |
| ドライブベイ |
8 x 3.5’’ or 2.5’’ (HDD Cage) |
| 対応電源 |
Standard PS2 PSU (optional) |
| 搭載可能ファン |
Left Side: 4 x 120mm , 4 x 140mm Right Side: 4 x 120mm , 4 x 140mm |
| 搭載可能ラジエーター |
Left Side: 1 x 480mm (MAX), 1 x 560mm (MAX) Right Side: 1 x 480mm (MAX), 1 x 560mm (MAX) |
| 搭載可能サイズ |
PSU length limitation: 220mm (with two bottom fans) |
